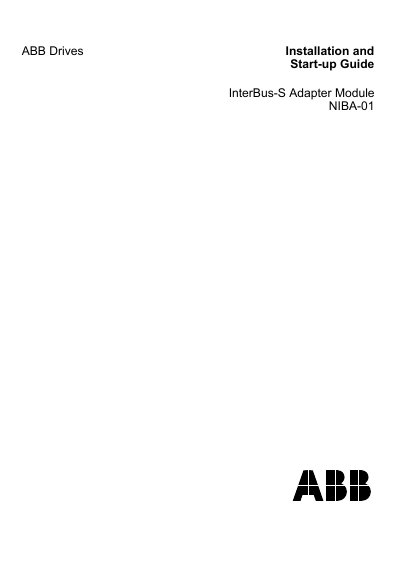

This document describes the installation and start-up instructions for the ABB NIBA-01 InterBus-S Adapter Module
This guide provides the safety instructions, mechanical mounting, electrical wiring, programming steps and communication details required to install and start up the ABB NIBA‑01 InterBus‑S Adapter Module. It is intended for qualified personnel who are familiar with ABB drives and basic electrical wiring.
The document includes a full list of technical data, ambient condition limits, connector pin‑outs and specifications such as enclosure dimensions, power consumption and communication parameters, enabling proper integration of the module into an InterBus‑S fieldbus system.
| Enclosure dimensions | 45 × 75 × 105 mm |
|---|---|
| IP rating | IP20 |
| Current consumption | 160 mA at 24 V DC |
| Maximum bus segment length | 400 m |
| Maximum number of remote bus segments | 32 |
| Transfer rate (DDCS link) | 4 Mbit/s |
| Operating temperature range | -20 °C to +70 °C |
A single bus segment can be up to 400 m long.
The system can support up to 32 remote bus segments.
The DDCS link operates at a transfer rate of 4 Mbit/s.
It consumes 160 mA at 24 V DC.
