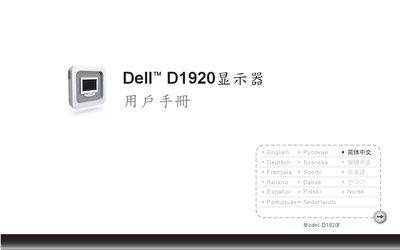

Dell D1920 monitor user manual, introduces the installation, use and maintenance of the monitor.
This manual covers safety precautions, unpacking, and step‑by‑step installation of the Dell D1920f monitor, including power and signal connections, and proper handling to avoid damage. It also explains how to recognize the monitor's parts and control buttons.
The guide details the on‑screen display (OSD) menu, customization options, hot‑keys, and provides troubleshooting tips for common issues such as no signal or incorrect settings. Technical specifications are listed at the end of the document. This manual is written in Chinese.
| Panel size | 409.8 x 230.4 mm |
|---|---|
| Dot pitch | 0.300 x 0.300 mm |
| Input connector | D‑sub (analog) |
| Tilt angle | -5° to +15° |
| Net weight | ≈3.3 kg |
| AC input | 100‑240 V, 50/60 Hz, 12 A |
| Power consumption | <25 W (active), <1 W (standby) |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -20 °C to 60 °C |
| Horizontal frequency | 30‑83 kHz |
| Vertical frequency | 50‑75 Hz |
When the monitor is on, the LED on the power button glows blue; when the monitor is in standby, the LED glows orange.
