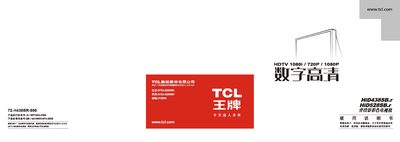

The TCL HID438SB.r and HID528SB.r televisions offer HDTV, DVD, and VGA inputs with high‑definition picture quality and a range of audio formats. The manual explains how to connect AV, HDMI, S‑Video, and VGA sources, adjust picture settings, and use the remote control functions.
Safety and installation guidelines are included, emphasizing the need to keep foreign objects out of the TV, avoid short circuits, handle the unit carefully during moving, and ensure proper ventilation. Power requirements, dimensions, and weight specifications are also provided. This manual is written in Chinese.
| Screen size | 43 in (HID438SB.r) / 52 in (HID528SB.r) |
|---|---|
| Power consumption | 200 W |
| Input voltage | 160 V‑240 V~ 50 Hz |
| Dimensions (HID438SB.r) | 932 mm × 470 mm × 1255 mm |
| Dimensions (HID528SB.r) | 1124 mm × 530 mm × 1348 mm |
| Weight (HID438SB.r) | 56 kg |
| Weight (HID528SB.r) | 66 kg |
| Video inputs | 4 video inputs, 1 video output |
| VGA input | 1 VGA (15‑pin) input |
The TV provides four video input ports and one video output port.
The TV consumes 200 W of power.
