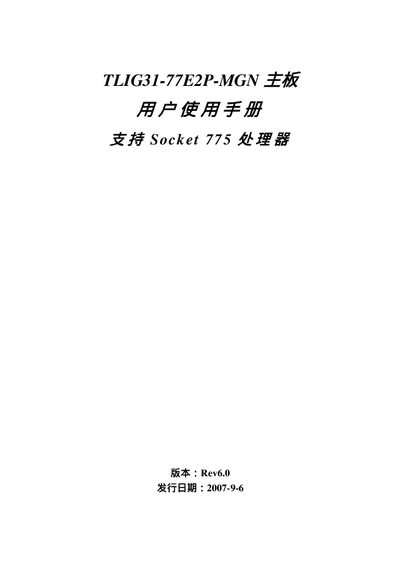

TLIG31-77E2P-MGN motherboard user manual, supports Socket 775 processors.
This manual provides an overview of the TLIG31-77E2P-MGN motherboard, its packaging contents, and key hardware features such as the Intel BearLake G1 chipset, MATX form factor, and supported processors. Detailed sections describe the motherboard layout, I/O interfaces, and configuration options.
Installation instructions cover mounting the CPU, connecting power and data cables, and installing drivers from the supplied CD. The guide also includes troubleshooting tips and safety notices. This manual is written in Chinese.
| Form factor | MATX (244 mm × 207 mm) |
|---|---|
| CPU socket | Intel LGA775 (Socket 775) |
| Front‑Side Bus | 800 MHz / 1066 MHz |
| Memory slots | 2 × 240‑pin DDR2 (667 MHz / 800 MHz) |
| PCI‑Express slots | 1 × PCI‑Express 16X, 1 × PCI‑Express 1X |
| Audio | 8‑channel HD Audio codec, 16‑bit stereo |
| LAN | Integrated 10/100/1000 Mbps Ethernet |
