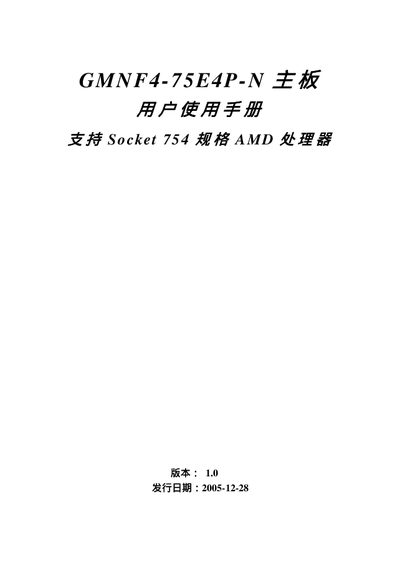

This document is an introduction to the user manual for the GMNF4-75E4P-N motherboard. The manual provides specifications and features of the motherboard, as well as instructions for installation and setup.
This manual provides detailed instructions for installing and configuring the GMNF4-75E4P-N motherboard, including hardware setup, driver installation, and audio system configuration.
It also lists the board's specifications such as supported CPU socket, memory types, I/O interfaces, and networking capabilities, helping users to correctly assemble and operate the system. This manual is written in Chinese.
| CPU socket | Socket 754 |
|---|---|
| Memory slots | 2 x 184‑pin DDR slots |
| Supported memory speeds | DDR266 / DDR333 / DDR400 |
| IDE channels | 2 primary/secondary IDE channels |
| SATA ports | 4 Serial ATA ports |
| Ethernet | 10/100 Mbps LAN |
| USB expansion | Expandable USB interface |
| Audio | 6‑channel AC97 v2.2 codec |
It uses a Socket 754 CPU socket.
The board provides two 184‑pin DDR memory slots.
It supports 10 Mbps and 100 Mbps Ethernet connections.
