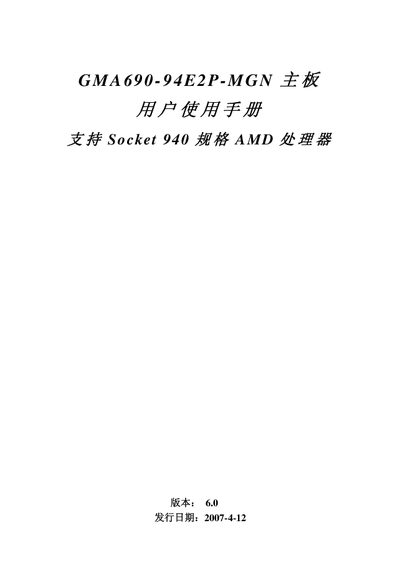

User manual for GMA690-94E2P-MGN motherboard, supporting Socket 940 specification AMD processors. It provides instructions for installation, setup, and BIOS configuration of the motherboard.
This manual provides an overview of the GMA690-94E2P-MGN motherboard, including packaging contents, system specifications, and a detailed diagram of the board and its I/O interfaces. It guides users through installing the CPU, memory, expansion cards, and connecting peripherals.
The document also explains BIOS configuration, power management, and how to install the supplied drivers and software from the CD, with step‑by‑step instructions for Windows operating systems. This manual is written in Chinese.
| Form factor | MATX, 244 mm × 220 mm |
|---|---|
| Northbridge chipset | AMD RS690 |
| Southbridge chipset | AMD SB600 |
| CPU socket | Socket 940 |
| Memory slots | 4 DDRII DIMM slots (240‑pin) |
| Supported memory speeds | DDRII 800/667/533 MHz |
| IDE/SATA channels | 1 IDE channel, 2‑4 Serial ATA channels |
| PCI Express slots | 1 PCI‑Express x16 slot, 2 PCI slots |
| Audio | 8‑channel HD‑Audio codec |
| USB | USB 2.0, up to 480 Mbit/s |
| LAN | 10/100 Ethernet port |
It provides four DDRII DIMM slots (240‑pin).
The board supports Socket 940 processors.
Insert the driver CD, let it autorun, then select “ATI chipset series motherboard”, followed by “RS690 series motherboard” and install the chipset, audio and network drivers.
The motherboard includes an integrated 10/100 Ethernet (LAN) port.
