QDI P5I945P(L)M 2.0 Motherboard User Manual

This document is a certificate of compliance with the EU EMC directive, demonstrating that the QDI Technology Limited motherboard model P5I945P(L)M 2.0 complies with EU electromagnetic compatibility standards.

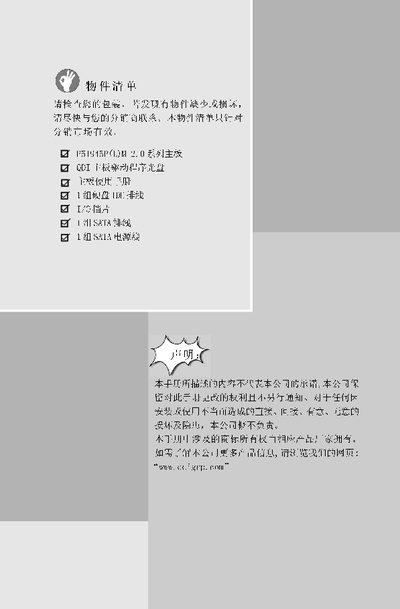

QDI P5I945P(L)M 2.0 Motherboard User Manual - cover page
Brand
P5I945P(L)M
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
39
File format
PDF
File size
3.6 MB
Published
21 March, 2012
Updated
28 September, 2023
MD5 checksum
379366A5DB4C396084D1F7FEF2CD0C7B
PDF
QDI P5I945P(L)M 2.0 Motherboard User Manual PDF

About this manual

This manual covers safety precautions, connector layouts, and detailed installation procedures for the QDI P5I945P(L)M 2.0 motherboard. It includes compliance certificates, FCC and EMC declarations, and warnings for handling sensitive components.

Technical sections describe the board's form factor, supported CPUs, memory types, SATA and USB ports, audio capabilities, and BIOS features, helping users configure and maintain the system correctly. This manual is written in Chinese.

What's inside

  • Certificate of Compliance
  • Declaration of Conformity
  • Safety Instructions
  • Connector Layout
  • Main Specifications
  • CPU Installation Process
  • BIOS Features
  • Audio Features

Specifications

CPU socketLGA775
Memory supportDDRII 400/533/667 MHz, up to 4 GB
SATA ports4 independent SATA ports
USB ports8 USB 2.0 ports, up to 180 MB/s
Audio6‑channel AC'97 audio

Frequently asked questions

What safety precautions should be taken before installing the motherboard?

Handle the board in an anti‑static bag, avoid touching components with bare hands, and wait at least 30 seconds after power removal before proceeding.

How many SATA ports does the P5I945P(L)M 2.0 motherboard provide?

The board provides four independent SATA connectors.

What CPU socket type is supported by this motherboard?

It supports Intel LGA775 processors.

Download PDF (3.6 MB)
