EP-3VBA2/EP-6VBA2 motherboard Manual

This document introduces the features and characteristics of the EP-3VBA2/6VBA2 model.

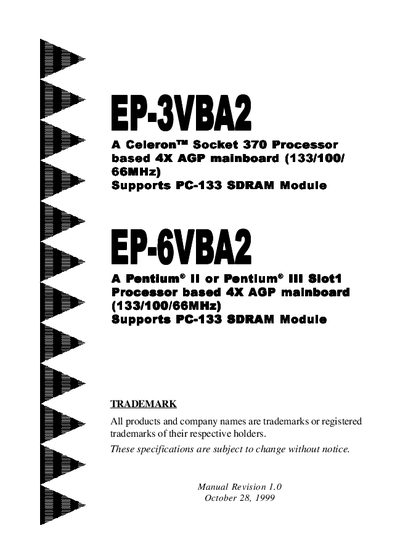

EP-3VBA2/EP-6VBA2 motherboard Manual - cover page
Brand
EP-3VBA2/EP-6VBA2
Category
Motherboard
Document type
User Manual
Language
English
Pages
73
File format
PDF
File size
1.4 MB
Published
21 March, 2012
Updated
30 September, 2023
MD5 checksum
B97DDA79DF8A6CCAD5E9F74D4B232539
PDF
EP-3VBA2/EP-6VBA2 motherboard Manual PDF

About this manual

This manual covers the EP-3VBA2/6VBA2 mainboard, a 4‑slot AGP motherboard designed for Pentium II or Pentium III processors. It includes a components checklist, detailed layout diagrams for both EP‑3VBA2 and EP‑6VBA2 revisions, and instructions for installing processors, memory, and peripherals.

Additional sections describe BIOS configuration, power‑on/off remote control, hardware monitoring features, and troubleshooting. Technical support contact information and warranty notices are also provided.

What's inside

  • Introduction
  • Features
  • Installation
  • BIOS Setup
  • Hardware Monitoring
  • Appendix
  • Technical Support Services

Specifications

Bus Interface4X AGP (133/100/66 MHz)
Supported MemoryPC‑133 SDRAM Modules
Supported ProcessorsPentium II or Pentium III
Graphics InterfaceAccelerated Graphics Port (AGP)
Hardware MonitoringCPU temperature, voltage, fan RPM
Power‑On/Off ControlRemote power‑on/off capability
I/O ShieldStandard I/O shield connector

Frequently asked questions

What processors are supported by the EP-3VBA2/6VBA2 motherboard?

The board supports Pentium II or Pentium III processors.

How should the motherboard be handled to avoid static damage?

Handle the board on an antistatic surface, keep the power supply unplugged, and follow the handling procedures.

Where can I get technical support for this motherboard?

You can contact EPoX technical support via their website or email addresses listed in the manual.

Download PDF (1.4 MB)
