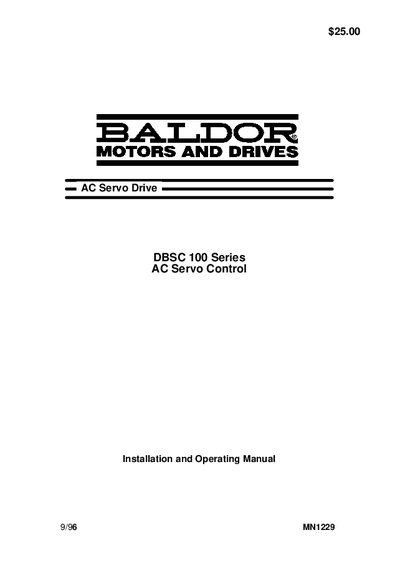

This manual describes the basic installation and operation of the DBSC 100 series AC servo controllers, including safety precautions, specifications, installation, connection, debugging, troubleshooting and maintenance.
This manual describes the installation, wiring, and initial setup of the DBSC 100 Series AC Servo Control. It includes detailed instructions for mounting, power connections, signal wiring, and configuration of DIP switches and jumpers.
Safety precautions, operating conditions, and troubleshooting guidance are also covered, ensuring qualified personnel can safely commission and maintain the control in industrial environments.
| Current rating (low speed) | 2.5 A |
|---|---|
| Current rating (high speed) | 5 A |
| Standard input power | 230 VAC |
| Optional external logic input | 24 VDC |
| Field bus option | CAN Bus |
The warranty lasts for one (1) year from the date of original purchase.
Only qualified personnel should service the unit, power must be disconnected, wait at least five minutes for capacitors to discharge, and ensure the system is properly grounded.
The control can be powered from standard 230 VAC, 115 VAC, or an optional external 24 VDC logic input.
It offers no field‑bus option or an optional CAN Bus interface.
