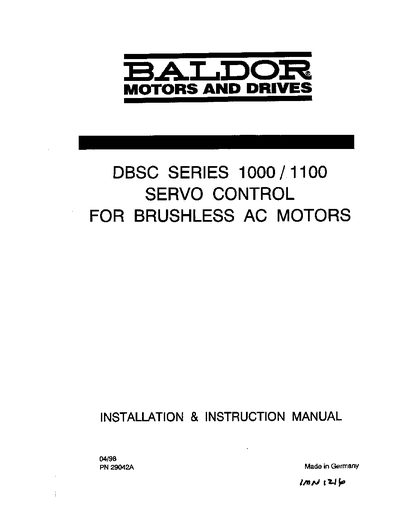

This manual provides step‑by‑step installation and wiring instructions for the Baldor DBSC1000/1100 series servo controller, intended for industrial three‑phase AC motor applications. It includes safety notices, mechanical mounting details, and environmental requirements.
The document also contains technical data, EMC and CE conformity information, wiring diagrams for power and control sections, and a software installation chapter for the Windows‑based setup program. Appendices cover multi‑drop RS‑485 applications and additional troubleshooting tips.
| Input Voltage | 250 V AC max |
|---|---|
| Output Current Options | 2 A, 5 A, 10 A, 15 A |
| Maximum Output Power | 6.5 kVA |
| Efficiency | > 95 % |
| Protection Class | IP20 |
| Dimensions (mm) | 55 × 400 × 265 |
| Weight | 4.5 kg |
| Storage Temperature Range | -25 °C … +70 °C |
The controller accepts either single‑phase (1‑) or three‑phase input with a transformer, up to 250 V AC.
Four output current versions are offered: 2 A, 5 A, 10 A, and 15 A.
The enclosure has a protection class of IP20.
A minimum of an Intel 80486 / 33 MHz processor, 8 MB RAM, 50 MB hard‑disk space, and a 600 × 480 screen are required.
