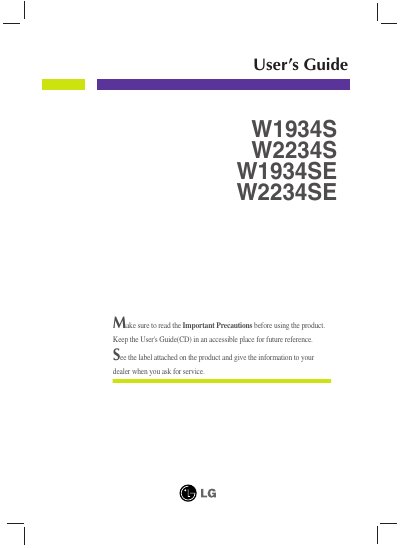

This document provides the user guide for W1934S, W2234S, W1934SE, W2234SE products, including basic rules for installation, use, and servicing, as well as precautions and safety measures.
This manual provides important safety precautions, installation steps, and operating instructions for the LG W1934S, W2234S, W1934SE and W2234SE LCD monitors. It explains how to connect power and signal cables, assemble the stand, adjust the tilt, and use the on‑screen display (OSD) functions.
The document also lists the technical specifications for each model, including screen size, resolution, power consumption, tilt range, and environmental limits, and gives guidance on cleaning, disposal, and wall‑mount installation.
| Visible diagonal size | 48 cm (W1934S/W1934SE), 55.8 cm (W2234S) |
|---|---|
| Maximum resolution | 1440 × 900 @ 75 Hz (W1934S/W1934SE), 1680 × 1050 @ 60 Hz (W2234S) |
| Power consumption (On Mode) | 36 W typ. (W1934S), 40 W typ. (W2234S), 22 W typ. (W1934SE) |
| Tilt range | -5° to 20° |
| Weight (without packaging) | 3.2 kg (W1934S/W1934SE), 4.7 kg (W2234S) |
Unplug the display, then wipe the screen with a slightly damp (not wet) cloth; do not spray aerosol directly on the screen.
Contact the manufacturer or the nearest authorized repair service provider for a replacement power cord.
Yes, the monitor is compatible with a wall‑mount plate (sold separately); follow the wall‑mount installation steps in the manual.
