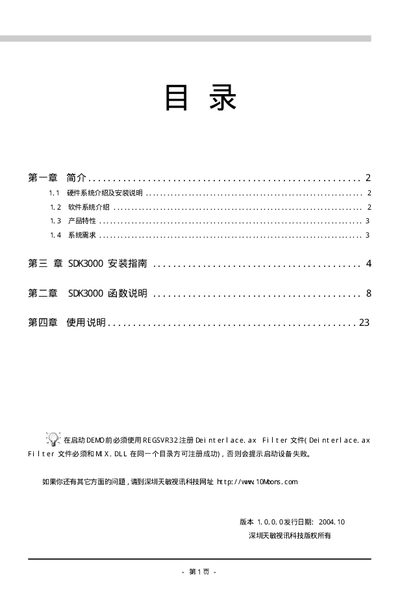

10moons SDK3000 development package instruction manual, containing hardware system introduction and installation instructions, software system introduction, software function introduction, installation instructions, function description, use instructions, etc. It is suitable for users who use 10moons SDK3000 system products to develop
The SDK3000 is a PCI video capture card designed for developers and video‑enthusiasts. It supports up to four video channels and one S‑Video channel, multiple video standards (PAL, NTSC, SECAM) and provides real‑time preview, capture and image processing functions.
This guide explains the system requirements, driver installation, application software setup, and provides detailed function references for developers using the SDK3000 on Windows 2000/XP platforms. This manual is written in Chinese.
| CPU requirement | 1.0 GHz |
|---|---|
| Memory requirement | 128 MB |
| Hard‑disk requirement | 40 GB or larger |
| Supported operating systems | Windows 2000, Windows XP |
| Video input channels | 4 video + 1 S‑Video |
| Supported video standards | PAL, NTSC, SECAM |
| Maximum frame rate (50 Hz source) | 25 fps |
| Maximum frame rate (60 Hz source) | 30 fps |
| Supported video formats | YUY2, RGB32, RGB24, RGB555 |
| Default brightness value | 0x80 |
| Default contrast value | 0x44 |
Insert the SDK3000 driver CD, choose “Search automatically for updated driver” (or browse to the driver folder), and follow the prompts; the system will detect the card and complete the installation.
The card provides four video channels and one S‑Video channel for simultaneous capture.
The SDK3000 driver and application software run on Windows 2000 and Windows XP.
Right‑click the XVID codec file in the Nbeg4Codec directory, select “Install” from the context menu, and the engine will be registered for use.
