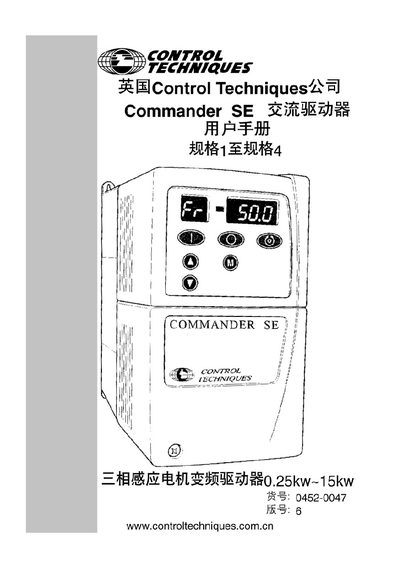

This manual covers safety information for the Commander SE AC drive, including warnings, hazard analysis, personal safety guidelines, and compliance with European EMC and safety directives. It also describes the product features, technical data such as power rating and rated voltage, and the available control methods.
Installation instructions detail mechanical mounting, electrical wiring, port connections, and EMC compatibility. The document includes parameter tables, UL compliance information, and troubleshooting guidance for fault diagnosis and maintenance. This manual is written in Chinese.
| Power rating | 0.25 kW – 15 kW |
|---|---|
| Maximum output current (SE11200025) | 1.5 A |
| Maximum output current (SE11200037) | 2.3 A |
| Maximum output current (SE11200055) | 3.1 A |
| Maximum output current (SE11200075) | 3 A |
| Rated AC supply voltage | up to 264 V |
| Maximum ambient temperature | 40 °C (104 °F) |
The Commander SE is rated for power from 0.25 kW up to 15 kW.
Model SE11200025 can deliver a maximum output current of 1.5 A.
The device must not be operated in ambient temperatures above 40 °C (104 °F).
