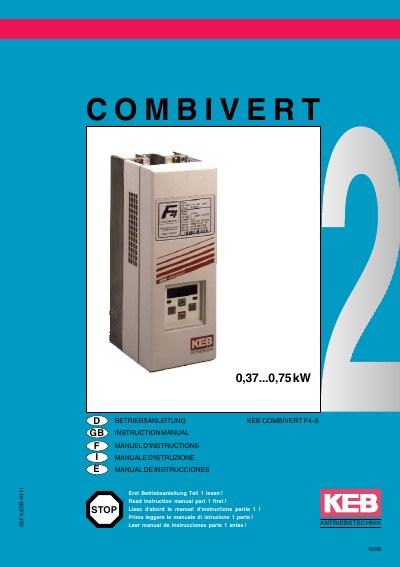

This document is an instruction manual for C O M B I V E R T 00.F4.S0B-K111 0,37.0,75 kW ANTRIEBSTECHNIK STOP. It provides safety and warning information that users need to be familiar with before using the product.
This manual describes the KEB COMBIVERT F4-S frequency inverter, a device for stepless speed regulation of three‑phase motors with power ratings of 0.37 kW and 0.75 kW. It includes safety information, pictogram meanings, and general product data.
Detailed sections cover the power circuit (input/output specifications, dimensions, terminal layout), the control circuit (terminal strip assignments, digital and analog inputs), installation guidelines, wiring instructions, and error diagnosis. Contact information for KEB subsidiaries worldwide is provided at the end of the document.
| Input voltage range | 180‑264 V |
|---|---|
| Input frequency | 50/60 Hz |
| Nominal output power | 0.37 kW / 0.75 kW |
| Peak current (<30 s) | 4.6 A / 8.0 A |
| Nominal output current | 2.3 A / 4.0 A |
| Maximum switching frequency | 8 kHz |
| Power loss | 35 W / 50 W |
| Maximum permissible mains fuse | 10 A / 20 A |
| Operating temperature range | -10 °C to +45 °C |
| Storage temperature range | -25 °C to +70 °C |
The user must read the entire instruction manual, become familiar with the device, and follow all safety and warning pictograms.
The inverter accepts an input voltage of 180 V to 264 V.
The unit is available with nominal output powers of 0.37 kW and 0.75 kW.
