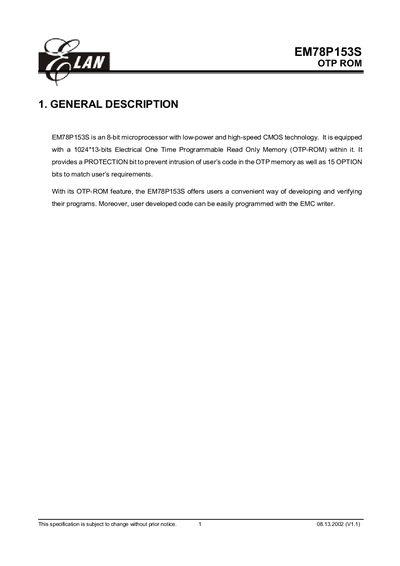

The EM78P153S is an 8‑bit microprocessor with low‑power, high‑speed CMOS technology that includes a 1024 × 13‑bit One‑Time Programmable ROM. It offers a protection bit, 15 option bits, two bi‑directional I/O ports, a real‑time clock/counter, and several interrupt sources. The manual lists operating voltage, temperature, frequency ranges, power consumption, and built‑in calibrated oscillators.
The document includes a pin‑assignment table, functional block diagram, register descriptions, and AC electrical characteristics. Package options are provided for 14‑pin DIP and SOP versions, along with detailed timing parameters for reset, watchdog, and I/O pins.
| Operating voltage range | 2.3 V ~ 5.5 V |
|---|---|
| Operating temperature range | 0 °C ~ 70 °C |
| Crystal mode frequency | DC ~ 20 MHz at 5 V, DC ~ 8 MHz at 3 V, DC ~ 4 MHz at 2.3 V |
| OTP ROM size | 1024 × 13 bits |
| Typical power consumption | less than 1.5 mA at 5 V/4 MHz |
| Package type | 14‑pin DIP or SOP |
The EM78P153S operates from 2.3 V to 5.5 V.
Both the DIP and SOP versions of the EM78P153S have 14 pins.
The device contains a 1024 × 13‑bit OTP ROM.
Typical consumption is less than 1.5 mA at 5 V/4 MHz.
