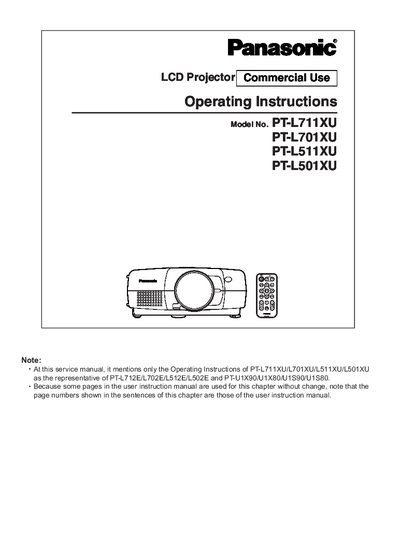

Panasonic PT-L711XU PT-L701XU PT-L511XU PT-L501XU Projector Operating Instructions

About this manual

This manual provides detailed operating instructions for Panasonic PT‑L711XU, PT‑L701XU, PT‑L511XU and PT‑L501XU LCD projectors intended for commercial use. It covers the location and function of each part, control panel operation, remote control usage, connection methods, lamp installation, and troubleshooting.

The guide also includes an appendix with a list of compatible video signals and resolutions, as well as safety and maintenance notes to ensure reliable performance in professional environments.

What's inside

• Location and function of each part
• Connector panel
• Projector control panel and remote control unit
• Using the remote control unit
• Connections
• Lamp installation and maintenance
• Appendix – List of compatible signals

Specifications

Frequently asked questions

What battery type is required for the remote control unit?

The remote control unit uses a CR2025 lithium battery.

How far can the remote control unit operate from the projector?

The remote control unit works up to approximately 7 m (23°) from the projector’s signal receptors.

What should be done if the POWER button does not illuminate red when turned on?

Check that the lamp unit and lamp unit cover are securely installed, then try turning the MAIN POWER switch off and on again.

Can the projector be connected to a computer via RS‑232C?

Yes, the SERIAL connector is RS‑232C compatible for external control.
