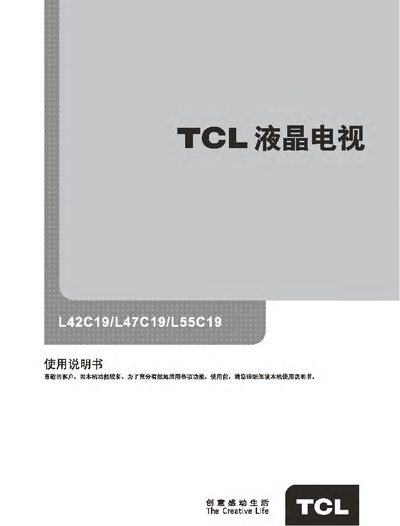

This manual guides owners of the TCL L42C19, L47C19 and L55C19 liquid‑crystal televisions through safe installation, basic operation, and maintenance. It includes safety precautions, a list of supplied accessories, and detailed specifications for each model.
Key sections cover the TV’s features, front‑panel diagram, connection methods for antenna, HDMI, VGA, component and video inputs, remote‑control functions, menu navigation, and a troubleshooting guide for common issues such as no picture, no sound, or interference. This manual is written in Chinese.
| Screen diagonal size | ≈107 cm / ≈119 cm / ≈140 cm |
|---|---|
| Audio output power | 10 W + 10 W (left + right) |
| Working voltage | 220 V ~ 50 Hz |
| Rated power consumption | 240 W / 320 W / 380 W |
| Dimensions (W×H×D) without base | 1006 mm × 657 mm × 115 mm (L42C19) |
| Weight with base | ≈22.5 kg / ≈23.5 kg / ≈35 kg |
| Operating temperature range | 5 °C ~ 35 °C |
Check that the power is on, the battery is correctly installed, the mute function is off, and that a valid signal source is selected.
Connect the HDMI cable between the source device and the TV’s HDMI port, then press the source key and select “HDMI” as the input.
Use a dry, soft, lint‑free cloth or a LCD‑specific cleaning solution, and avoid applying pressure to the screen.
The product and its remote control have an environmental service life of 10 years.
