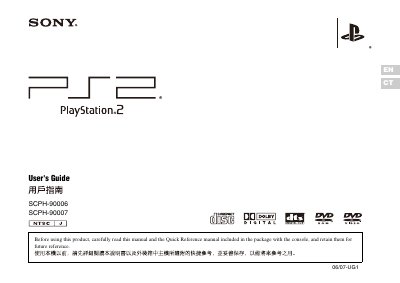

This manual provides basic instructions on how to use the PlayStation®2 console, including how to connect the console to a TV, connect digital audio equipment, connect the controller, connect the power cord, play games, play audio CDs, watch DVDs, and connect to a network.
This guide explains how to set up the PlayStation 2 console, including connecting to a TV, attaching digital audio equipment, linking controllers, and configuring network settings. It also covers basic operation such as turning the console on/off, navigating menus, playing games, audio CDs, DVDs, and using the browser screen.
The document lists technical specifications, safety warnings, and required accessories. It details power requirements, dimensions, weight, supported signal formats, operating temperature, and the available input/output ports on the front and rear of the console.
| Power requirements | AC220-240V 50Hz (SCPH-90006) / AC110V 50/60Hz (SCPH-90007) |
|---|---|
| Power consumption | 35 W (approx.) |
| Console dimensions | 230 × 28 × 152 mm |
| Console mass | 720 g (approx.) |
| Signal format | NTSC |
| Operating temperature | 5 °C to 35 °C |
| Controller ports | 2 |
| Memory Card slots | 2 |
| USB connectors | 2 |
Connect the console to the TV using the supplied AV cable and the AV MULTI OUT connector, making sure the TV is turned off before connecting.
The SCPH‑90006 model requires AC 220‑240 V at 50 Hz.
The console provides two controller ports.
