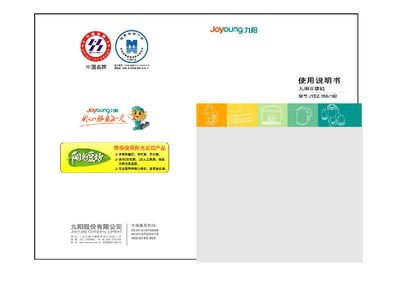

This manual provides detailed information on the components, functions and operation of the Joyoung JYDZ-15B/15D soy milk maker. It includes step‑by‑step instructions for preparing five‑grain, whole‑bean and other drinks, as well as safety precautions and cleaning procedures.
Technical specifications, applicable standards and a troubleshooting guide are also included to help users maintain the appliance and resolve common issues. This manual is written in Chinese.
| Rated Voltage | 220 V |
|---|---|
| Rated Frequency | 50 Hz |
| Motor Power | 180 W |
| Heating Power | 650 W |
| Net Weight | 2.15 kg |
| Dimensions (L×W×H) | 215 mm × 165 mm × 295 mm |
| Water + Bean Capacity | 800‑1000 ml |
The machine has a no‑water dry‑burn protection and will not operate when the water level is too low.
Do not press any function keys; wait for about 3 minutes, then reconnect the power and restart the machine.
The machine uses a spill‑prevention electrode that detects boiling and automatically reduces heating power to stop overflow.
