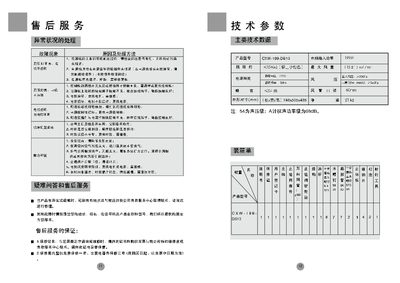

This manual covers the Haier CXW-199-DS13 kitchen range hood, describing its main components, technical parameters, and safety precautions. It is intended for end‑users and professional installers.
The document includes step‑by‑step installation guidance, operating instructions for lighting, speed and timer functions, regular cleaning and maintenance procedures, a troubleshooting guide for common faults, and after‑sales service information. This manual is written in Chinese.
| Motor power | 199 W |
|---|---|
| Lighting lamp power | 15 W × 2 |
| Maximum airflow | ≈16 m³/min |
| Sound pressure level | 54 dB (A‑weighted 68 dB) |
| Dimensions (L×W×H) | 748 mm × 505 mm × 435 mm |
| Net weight | 21 kg |
Turn off the power, remove the existing bulb from the socket, and install a new 15 W bulb as shown in the lamp‑installation steps.
The motor has a thermal protection device that cuts power when the temperature reaches a safe limit; after cooling, the motor can be restarted.
