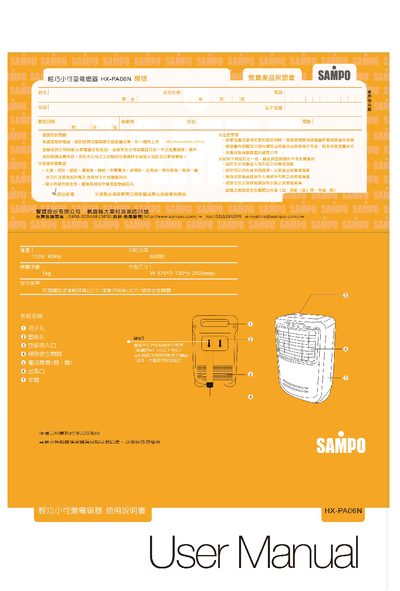

The HX-PA06N is a lightweight, compact electric heater intended for household use. It operates on 110 V AC at 60 Hz and includes safety features such as a temperature cutoff and tilt‑switch.
The manual covers safety precautions, proper installation (including wall‑mounting), operating instructions, cleaning and maintenance procedures, and guidance for handling power‑cord damage or other faults. This manual is written in Chinese.
| Power consumption | 600 W |
|---|---|
| Input voltage / frequency | 110 V 60 Hz |
| Dimensions (W×D×H) | 170 mm × 130 mm × 250 mm |
| Temperature cutoff | 110 °C |
Use an AC power source of 110 V at 60 Hz with a current rating of 15 A or higher.
Insert a screw into the wall‑mounting hole and ensure the screw protrudes at least 1.5 cm after tightening.
Do not immerse the heater in water; wipe it with a slightly damp cloth and dry it thoroughly before reuse.
The power cord must be replaced only by the manufacturer or qualified service personnel.
