The document provides information on the models, specifications, features, and characteristics of the RUS and JSQ series products.

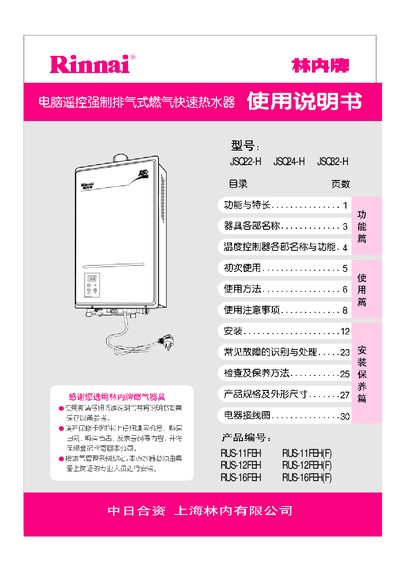

This manual provides technical data for the Rinnai JSQ22-H, JSQ24-H, and JSQ32-H water heater series. It lists model numbers, pressure ranges, flow rates, dimensions, weight, voltage, and power consumption.
The document also includes reference values such as operating pressure, flow capacity, and electrical requirements to assist with installation and service of the units.
| Flow rate | 16 L/min |
|---|---|
| Dimensions (W×H×D) | 353 mm × 564 mm × 133 mm |
| Maximum operating pressure | 980 kPa (10 kgf/cm²) |
| Supply voltage | AC 220 V / 50 Hz |
| Power consumption | 65 W |
The flow rate is 16 L/min.
The units measure 353 mm wide, 564 mm high, and 133 mm deep.
They operate on AC 220 V at 50 Hz.
The maximum pressure is 980 kPa (approximately 10 kgf/cm²).
