AI-508 is an economical and easy-to-operate model of Yudian artificial intelligent industrial controller, specially designed for use in the industries of plastic machinery, food machinery, packaging machinery, baking machinery and environmental testing equipment.
The Al-508 is an artificial‑intelligence temperature controller designed for plastic, food, packaging, baking machinery and environmental testing equipment. It offers AI control with auto‑tuning, multiple thermocouple/RTD inputs, modular output options and a universal 100‑240 VAC power supply.

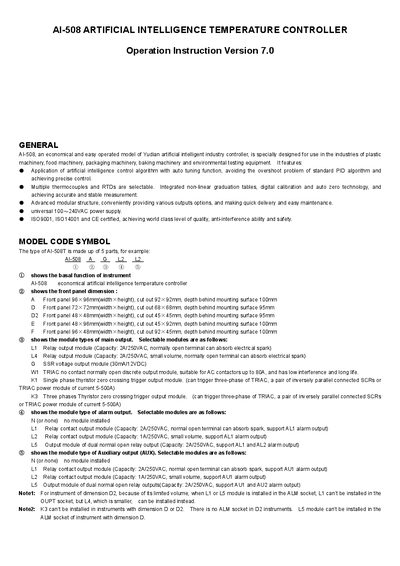

The manual covers general features, technical specifications, front‑panel layout, operation description, parameter settings, and detailed wiring diagrams for the various instrument dimensions. It explains how to set values, use auto‑tuning, configure alarms and select output modules.
| Input type | K, S, R, E, J, N, Pt100 |
|---|---|
| Measurement range (K) | 0~1300°C |
| Measurement accuracy | 0.3%FS+1°C |
| Temperature display resolution | 1°C |
| Control mode | On‑off or Artificial Intelligence with auto‑tuning |
| Output modules selectable | L1, G, W1, K1, K3 |
| Alarm function | High limit and deviation high alarm |
| Power supply voltage rating | 100‑240 VAC, -15%/+10%, 50‑60 Hz |
| Power consumption | <3 W |
| Ambient operating temperature | -10~60°C, humidity 0~90%RH |
| Front panel size (A) | 96 × 96 mm (cut out 92 × 92 mm), depth 100 mm |
The controller consumes less than 3 W of power.
The device accepts thermocouples K, S, R, E, J, N and Pt100 resistance temperature detectors.
