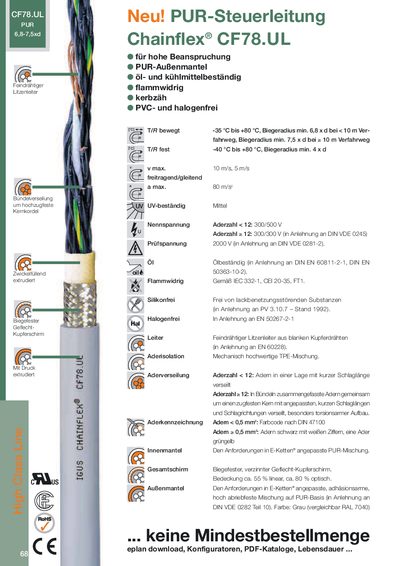

This document introduces a new PUR control cable with high bending and abrasion resistance.
The CF78.UL is a high‑performance PUR cable designed for demanding applications. It offers a wide temperature range, excellent oil and coolant resistance, UV stability, and is both silicone‑ and halogen‑free. The cable features a feindrähtiger (strand‑type) copper conductor with a robust TPE‑based insulation and a braided copper shield.
Typical uses include high‑stress handling, outdoor installations, and environments with oil or coolant exposure, such as machine tools, storage‑handling systems and packaging equipment. Ordering information, including conductor cross‑sections, outer diameters and pricing, is provided in the product table. This manual is written in German.
| Operating temperature (moving) | -35 °C to +80 °C |
|---|---|
| Operating temperature (fixed) | -40 °C to +80 °C |
| Minimum bend radius (moving, <10 m) | 6.8 × d |
| Minimum bend radius (fixed, <10 m) | 4 × d |
| Nominal voltage (≤12 strands) | 300/500 V |
| Test voltage | 2000 V |
| Oil resistance | Yes (DIN EN 60811‑2‑1, DIN EN 50363‑10‑2) |
| Flame retardancy | IEC 332‑1, CEI 20‑35, FT1 |
| Halogen free | Yes (EN 50267‑2‑1) |
| UV resistance | Yes |
| Conductor type | Feindrähtiger Litzenleiter aus blanken Kupferdrähten |
| Outer diameter (CF78.UL.05.04, 4 × 0.5 mm²) | 8.0 mm |
The nominal voltage is 300 V/500 V for cables with less than 12 strands.
Yes, it is oil‑resistant according to DIN EN 60811‑2‑1 and DIN EN 50363‑10‑2.
No, the cable is halogen‑free as specified by EN 50267‑2‑1.
