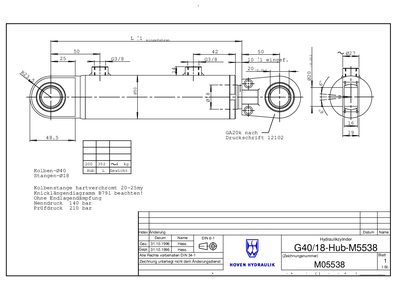

This document is an engineering drawing of a M05538 G40/18-Hub-M5538 hydraulic cylinder, which includes detailed dimensions of the cylinder body, stroke length, weight, etc.
The document provides technical specifications for the HOVEN M05538 hydraulic cylinder. It lists key parameters such as nominal and proof pressures, stroke length, weight, and material details.
The sheet follows DIN standards and includes drawing references and revision information. All data is presented in metric units suitable for engineering and maintenance use. This manual is written in German.
| Nominal pressure | 140 bar |
|---|---|
| Proof pressure | 210 bar |
| Stroke | 40 mm |
The nominal pressure is 140 bar.
The proof pressure is 210 bar.
The cylinder has a stroke of 40 mm.
