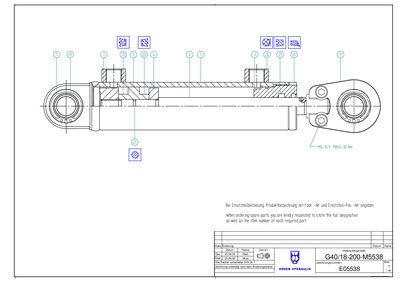

This is a hydraulic cylinder drawing
The document provides the technical specifications of the HOVEN hydraulic cylinder identified by drawing number E05538. It lists key dimensions such as the M8‑10.9 thread and a torque rating of 30 Nm, together with the drawing reference G40/18-200-M5538.
Additionally, the sheet contains instructions for ordering spare parts, requiring the full product designation and the item number for each part. The drawing is dated 25 June 2009 and is protected under DIN standards. This manual is written in German.
| Thread size | M8‑10.9 |
|---|---|
| Drawing number | E05538 |
When ordering spare parts you must state the full product designation and the item number of each required part.
The drawing number is E05538.
