PA 7200-CAN is a CAN bus interface with 1 serial interface, support RS422, RS485, Current Loop, and has 1000V isolation function.
The PA 7200-CAN is a CAN‑Bus interface module with galvanic isolation up to 1000 V. It provides a serial interface that can be configured as RS‑422, RS‑485 or a 20 mA current loop via DIP switches, and includes additional RS‑232/RS‑422/RS‑485 options.

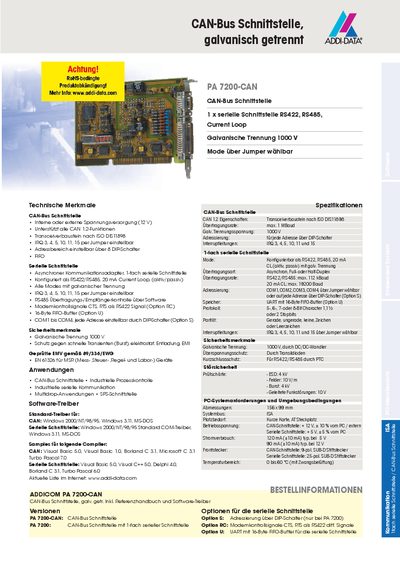

The sheet lists detailed electrical characteristics such as a maximum data rate of 1 Mbit, baud rates up to 112 kBaud for RS‑422/RS‑485, and a 1 GB FIFO buffer. Physical dimensions are 156 × 99 mm, and the module is compatible with Windows 2000/NT/98/95, Windows 3.11 and MS‑DOS environments. This manual is written in German.
| Galvanic isolation voltage | 1000 V |
|---|---|
| Maximum CAN data rate | 1 Mbit |
| RS‑422/RS‑485 max baud rate | 112 kBaud |
| 20 mA current loop max baud rate | 19200 Baud |
| FIFO buffer size | 1 GByte |
| Dimensions | 156 x 99 mm |
The module provides galvanic isolation up to 1000 V.
Mode is configurable via DIP switches or jumpers to choose RS‑422, RS‑485, or a 20 mA current loop.
RS‑422/RS‑485 can operate up to 112 kBaud.
Drivers are available for Windows 2000/NT/98/95, Windows 3.11 and MS‑DOS.
