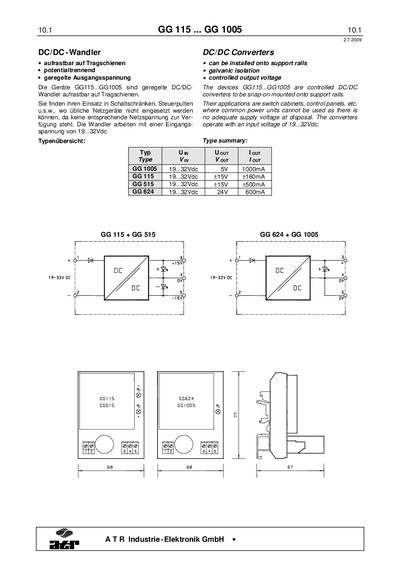

The document introduces the DC / DC converters GG 115 and GG 1005 produced by ATR Industrie-Elektronik GmbH, including input and output voltage, current, conversion efficiency, etc.
The GG series are regulated DC/DC converters that can be snap‑on mounted onto support rails. They provide galvanic isolation and are intended for use in switch cabinets, control panels and other applications where standard power supplies cannot be used due to insufficient supply voltage.
Key data include an input voltage range of 19‑32 Vdc, various fixed output voltages (5 V, +15 V, 24 V) with corresponding maximum output currents, an efficiency of 82 %, isolation voltage of 2500 V, and a compact weight of 140 g. Devices are secured with snap‑on fastening for TS15, TS32, TS35 mounting types. This manual is written in German.
| Efficiency | 82 % |
|---|---|
| Isolation voltage | 2500 V |
| Temperature coefficient | 0.18 %/K |
| Weight | 140 g |
| Mounting type | Snap‑on fastening for TS15, TS32, TS35 |
They have an isolation voltage rating of 2500 V.
The devices achieve an efficiency of 82 %.
They are snap‑on mounted onto support rails and use snap‑on fastening for TS15, TS32, and TS35 mounting types.
