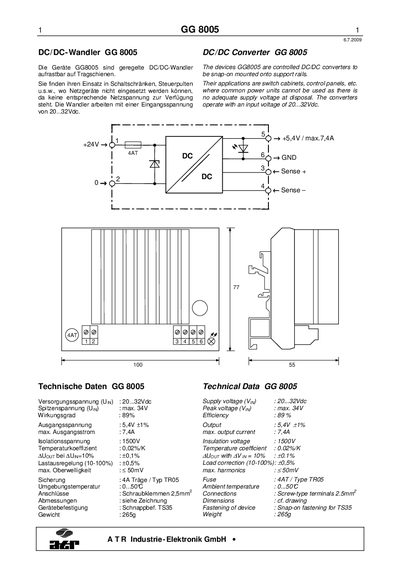

The GG8005 is a regulated DC/DC converter that can be snap-on mounted onto support rails. It is suitable for applications where a fixed voltage is required but no suitable power supply is available, such as switch cabinets and control panels. The converter operates with an input voltage of 20.32Vdc.
The GG8005 is a regulated DC/DC converter designed for snap‑on mounting on DIN rails in switch cabinets, control panels and similar equipment where standard power supplies cannot be used. It accepts an input voltage of 20 V to 32 V DC and provides isolated output.
Key specifications include a 5.4 V output voltage, up to 7.44 A output current, 89 % efficiency, 1500 V isolation rating, and operation over an ambient temperature range of 0 °C to 50 °C. The device is equipped with screw‑type terminals (2.5 mm) and weighs 265 g. This manual is written in German.
| Peak input voltage | max. 34 V |
|---|---|
| Efficiency | 89 % |
| Output voltage | 5.4 V |
| Maximum output current | 7.44 A |
| Isolation voltage | 1500 V |
| Ambient temperature range | 0 °C … 50 °C |
The converter can deliver up to 7.44 A of output current.
The device reaches an efficiency of 89 %.
