This document provides information about a washing machine.

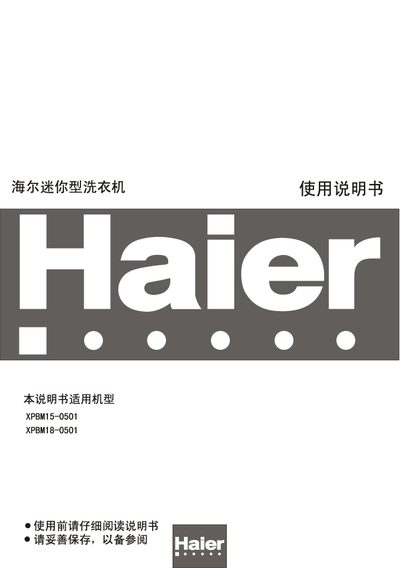

This manual provides the necessary safety warnings, installation steps, and operating instructions for Haier's mini washing machines (models XPBM15-0501 and XPBM18-0501). It covers power connection, water inlet requirements, load preparation, washing cycles, and troubleshooting.
Additional sections detail warranty terms, after‑sales service contacts, and compliance with Chinese standards (GB/T 4288‑2003). The document is written in Chinese and includes diagrams and tables for easy reference.
| Rated washing capacity (XPBM15-0501) | 1.5 kg |
|---|---|
| Rated washing capacity (XPBM18-0501) | 1.8 kg |
| Water inlet pressure (all models) | 0.02–0.2 MPa |
| Power supply | Single‑phase 220 V AC with reliable grounding |
The XPBM15-0501 can wash up to 1.5 kg of laundry per load, while the XPBM18-0501 can handle up to 1.8 kg.
The machine operates with an inlet water pressure between 0.02 MPa and 0.2 MPa.
Plug the power cord into a single‑phase 220 V AC socket with a reliable ground and, if possible, use a leakage protector.
The washing machine is covered by a three‑year free warranty, provided the user follows the manual’s instructions.
