AZ 15/16 safety switches with separate operating elements are used to protect electrical equipment and have an IP 67 protection rating and a rated voltage of 500V.
The AZ 15/16 safety switch from SCHMERSAL is a single‑actuated device designed for independent operation. It features a glass‑fiber reinforced thermoplastic housing that is self‑extinguishing and meets IP67 protection standards.

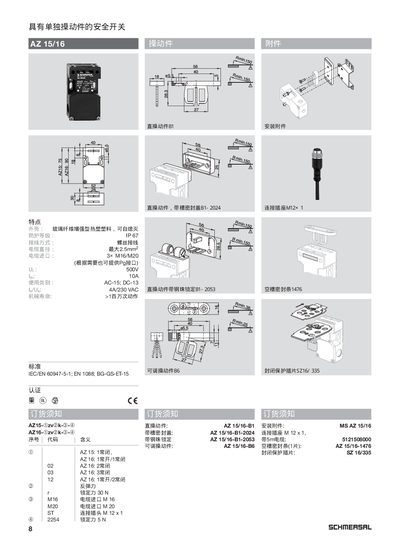

The leaflet lists electrical ratings (500 V 10 A AC‑15; DC‑13, 4 A/230 VAC), mechanical details such as locking forces (30 N and 5 N), and mounting accessories including M12x1 connectors and cable entries. The product complies with IEC 60947‑5‑1, EN 1088, and BG‑GS‑ET15 standards and is rated for over one million operations. This manual is written in Chinese.
| Housing Material | Glass‑fiber reinforced thermoplastic (self‑extinguishing) |
|---|---|
| Maximum Conductor Size | 2.5 mm² |
| Terminal Size | 3× M16/M20 (optional Pg interface) |
| Current Rating (AC) | 10 A AC‑15 |
| Current Rating (230 VAC) | 4 A |
| Mechanical Life | >1 million operations |
| Locking Force | 30 N (B1), 5 N (B6) |
| Standards | IEC 60947‑5‑1, EN 1088, BG‑GS‑ET15 |
It is rated for 10 A at 500 V AC‑15, 13 A at DC‑13, and 4 A at 230 VAC.
The device is rated for more than one million actuation cycles.
The B1 version provides a locking force of 30 N.
