E68/E68C GPS Vehicle Monitoring Terminal User Manual

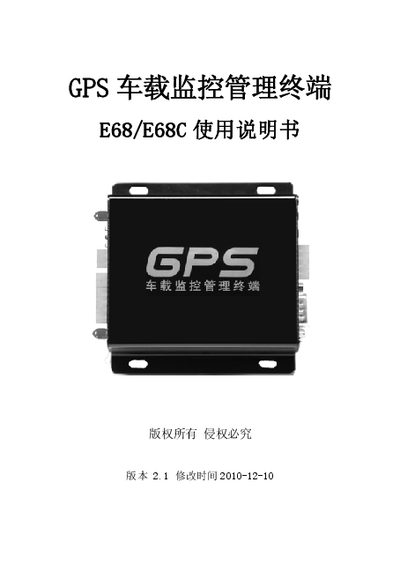

E68/E68C GPS Vehicle Monitoring Terminal User Manual - cover page
Brand
E68、E68C
Category
Vehicle GPS
Document type
User Manual
Language
Chinese
Pages
28
File format
PDF
File size
302 KB
Published
19 March, 2012
Updated
29 September, 2023
MD5 checksum
DE347F1F7BECE234D8AECF5F4FE55D21
PDF
E68/E68C GPS Vehicle Monitoring Terminal User Manual PDF

About this manual

The E68/E68C series is a vehicle‑mounted GPS monitoring terminal that provides satellite positioning, mobile map tracking, photo capture, vehicle listening, hands‑free voice, and customizable detection lines. It enables real‑time location, speed, mileage, and status monitoring to improve fleet safety and management.

The manual describes the hardware components, installation steps, wiring diagrams, feature setup (such as mobile map tracking, alarm configuration, and one‑key call), maintenance tips, and fault‑troubleshooting procedures. This manual is written in Chinese.

What's inside

  • 概述
  • 产品主要功能
  • 安装与接线
  • 手机卡安装
  • 报警开关安装
  • 现场调试检测
  • 主机接线图
  • 安装注意事项
  • 维护常识
  • 故障排除

Specifications

Hardware componentsmain unit, relay, GSM/ACDMA antenna, GPS antenna, 4P detection lines
Manual version2.1 (updated 2010‑12‑10)

Frequently asked questions

How do I set emergency alarm numbers?

Send an SMS in the format “12345交0##” to the terminal; a confirmation message will be returned.

How do I configure a one‑key call number?

Send an SMS “12345#97##” to the terminal; a confirmation SMS will indicate the number has been set and will take effect after 5 seconds.
