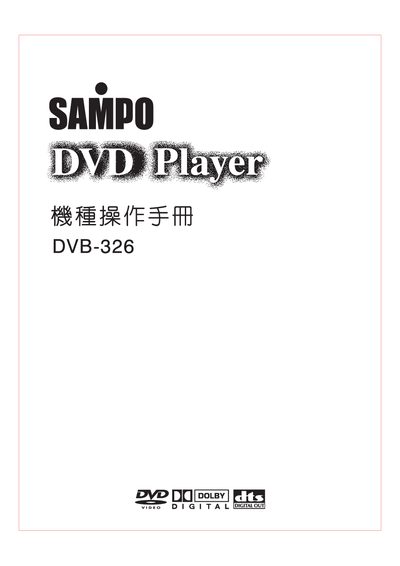

This manual covers safety precautions, required accessories, and step‑by‑step installation for the Sampo DVB‑326 DVD player. It explains how to connect audio/video cables, insert discs, and configure basic settings such as TV system and language.
The guide also details the functions of the front panel, rear panel, and remote control, describes menu navigation, playback controls, and includes technical specifications and a simple fault‑troubleshooting section. This manual is written in Chinese.
| Power Supply | AC100‑240V, 50/60 Hz |
|---|---|
| Dimensions (H×W×D) | 48 mm × 430 mm × 270 mm |
| Weight | 3.3 kg |
| Operating Temperature | 5 °C – 35 °C |
| Frequency Response | 20 Hz – 20 kHz |
| Dynamic Range | 90 dB |
| Audio Sample Rate | 96 kHz / 24‑bit |
| Signal‑to‑Noise Ratio | ≥96 dB |
Connect the audio‑in and video‑in cables from the player to the corresponding inputs on the TV as shown in the “A. 与电视机的连接” section.
Check that the disc is inserted correctly, clean it with a soft dry cloth, and ensure it is a genuine, non‑burned disc; the player will stop reading damaged or burned discs to protect the laser.
