This document is about the user manual of DVD drive, mainly introducing the safety use, placement and cleaning of DVD drive.

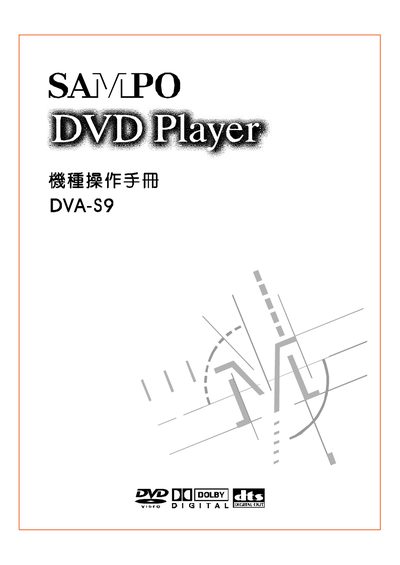

This manual covers safety precautions, power requirements, and proper handling of the DVA‑S9 DVD player, including warnings about the built‑in Class 1 laser and instructions for cleaning and storage. It also explains how to connect the unit, use the remote control, and configure audio‑video settings.
The document details the player’s features such as 5.1 surround sound output, Dolby/DTS support, and high‑resolution audio conversion, and provides a troubleshooting guide, warranty information, and a full list of technical specifications. This manual is written in Japanese.
| Power supply | AC 100‑120 V, 50/60 Hz |
|---|---|
| Power consumption | 5 W (≈7 W standby) |
| Weight | 3.0 kg |
| Dimensions (W×D×H) | 430 mm × 316 mm × 61 mm |
| Laser wavelength | DVD 650 nm, CD 790 nm |
| Laser output | Maximum 0.5 mW |
| Video output level | 1 Vp‑p (75 Ω) |
| Audio output level | 2 Vrms |
It requires an AC power source of 100‑120 V, 50/60 Hz.
