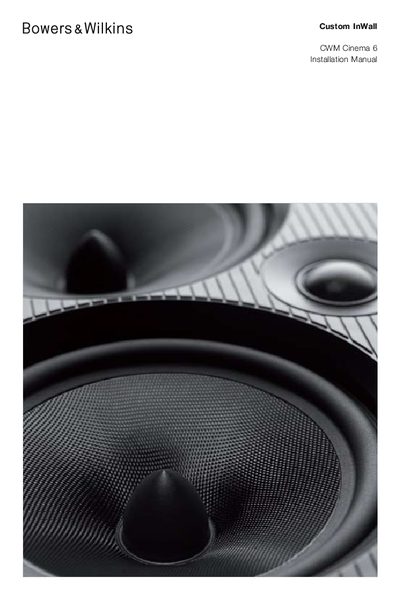

This manual introduces how to install Custom InWall CWM Cinema 6 speaker, including specifications, installation instructions and warranty information.
This manual explains how to install the B&W CWM Cinema 6 in‑wall speaker. It includes guidance on wall preparation, speaker positioning, cable selection, mounting procedures, finishing touches and warranty information.
Key sections cover speaker positioning for various home‑theatre layouts, recommended cavity volume, cable resistance limits, fitting the wall frame or baffle, damping the cavity, connecting the speaker and fine‑tuning the sound.
| Minimum cavity volume | 20 litres (0.8 cu ft) |
|---|---|
| Recommended cable resistance | ≤0.5 Ω (non‑critical) or ≤0.2 Ω (best results) |
The speaker needs at least 20 litres (0.8 cu ft) of cavity volume.
Keep loop resistance below 0.5 Ω for non‑critical installations and below 0.2 Ω for best results.
