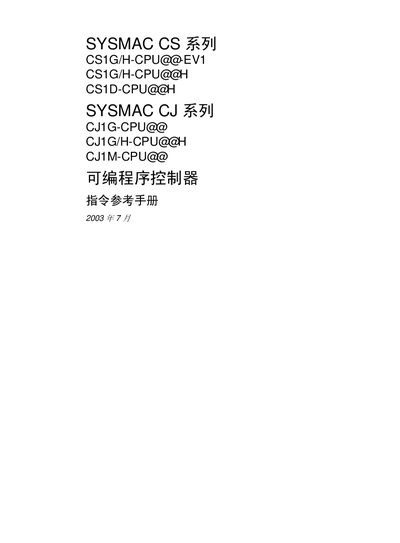

This manual describes the operations of the programmable controllers CS1G/H-CPU@@-EV1, CS1G/H-CPU@@H, CS1D-CPU@@H of SYSMAC CS series and CJ1G-CPU@@, CJ1G/H-CPU@@H, CJ1M-CPU@@ of SYSMAC CJ series.
The Instruction Reference Manual describes the ladder‑logic programming instructions supported by the SYSMAC CS and CJ series programmable controllers. It lists each instruction type, mnemonic, and functional description, covering timers, counters, arithmetic, logic, data transfer, and special functions.
The document also includes execution time and step count tables for each instruction, safety and usage notes, and cross‑references to related programming and communication manuals. It serves as a technical reference for engineers developing PLC programs with Omron hardware. This manual is written in Chinese.
| Supported CPU units | CS1G/H-CPUGQ@EV1, CS1G/H-CPUGGH, CS1D-CPUGGH, CJ1G-CPUGGH, CJ1M-CPUG@ |
|---|
The manual lists ladder‑diagram programming instructions such as timer, counter, arithmetic, logic, data transfer, and special function instructions.
Chapter 4 provides tables of instruction execution time and step count for both CS and CJ series.
