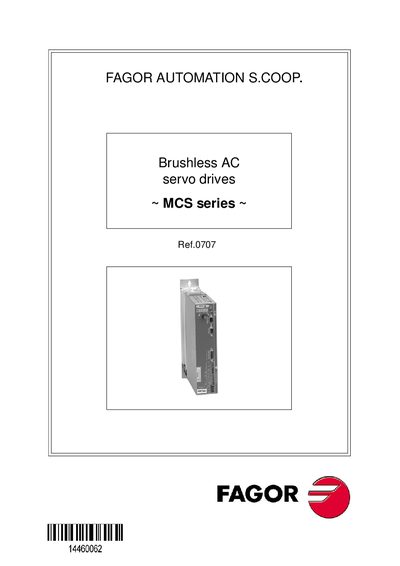

This document describes the description, installation, and startup of the brushless AC servo drives MCS series by FAGOR AUTOMATION S.COOP.
The Fagor MCS Series digital brushless AC servo drive system provides a complete solution for controlling AC brushless motors. This manual covers installation, electrical connections, motor selection, programming, and troubleshooting, guiding users through each step from initial setup to routine operation.
Detailed sections describe the specifications of the FXM and FKM brushless motors, the drive's hardware and software configuration, error messages, and maintenance procedures. Warranty terms, safety notices, and contact information for technical support are also included.
| Power supply (L series) | 220 V / 240 V ±10 % 50 Hz |
|---|---|
| Rated output current | 2.5 A (single‑phase) – 5 A (three‑phase) |
| Protection degree | IP20 (module enclosure) |
| Module dimensions | 67 × 280 × 245 mm |
| Module mass | 3.85 kg |
All products manufactured or marketed by Fagor carry a 12‑month warranty for the end user, with extensions possible if the warranty form is completed.
The drive can be stored from –20 °C to +80 °C.
Ambient temperature is specified from 0 °C to +40 °C.
The L series accepts 220 V / 240 V, while the H series accepts 400 V / 460 V, both with ±10 % tolerance.
