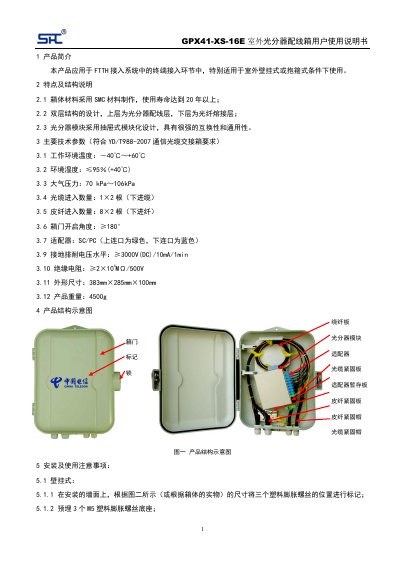

This manual introduces the product features, structure, installation and use precautions of GPX41-XS-16E outdoor optical splitter distribution box.
The GPX41-XS-16E is an outdoor optical splitter distribution box designed for FTTH terminal access. It features a double‑layer structure with a splitter wiring layer on top and a fiber fusion layer below, housed in a durable SMC material case.
The manual includes product overview, key features, technical specifications, installation methods (wall‑mount and clamp‑type), door operation instructions, and a complete packing list with required hardware and accessories. This manual is written in Chinese.
| Working environment temperature | -40°C to +60°C |
|---|---|
| Environmental humidity | ≤95% (+40°C) |
| Atmospheric pressure | 70 kPa–106 kPa |
| Optical cable entries | 1×2 |
| Fiber ribbon entries | 8×2 |
| Box door opening angle | ≥180° |
| Adapter type | SC/PC |
| Grounding bar voltage withstand | ≥3000 V DC /10 mA/1 min |
| Insulation resistance | ≥2×10⁴ MΩ/500 V |
| Dimensions (L×W×H) | 383 mm × 285 mm × 100 mm |
| Weight | 4500 g |
Insert the key into the lock hole on the right side and rotate clockwise about 10° to open the door.
