This document is a declaration of conformity for the SU-7 9311381 product, including its features and characteristics.

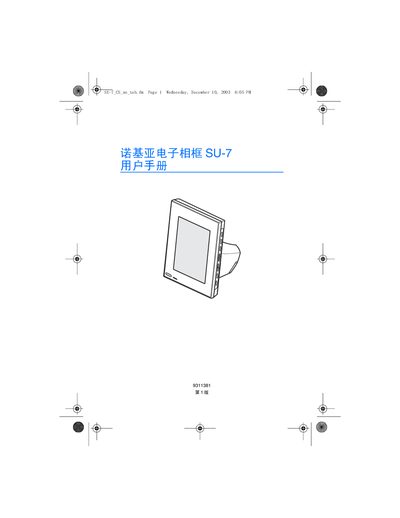

This manual explains how to install, configure and use the Nokia SU-7 electronic frame. It covers basic functions such as powering on, adjusting brightness, viewing and editing images, and receiving pictures via infrared or MMS.
Safety guidelines, power requirements, technical data and compatibility information are also included, helping users operate the frame safely in various environments such as hospitals, fuel stations and explosive‑risk areas. This manual is written in Chinese.
| Weight | 5.70 g |
|---|---|
| Dimensions (W×D×H) | 170 mm × 129 mm × 123 mm |
| Screen | 5.1‑inch STN color LCD, 320 × 240 px, 4096 colors |
| Power Supply | ACW‑5A (AC to low‑voltage DC) |
| Operating Temperature | 0 °C to 40 °C |
| Compatibility | Works with Nokia phones and other devices that support IR image transfer |
| Supported Image Formats | JPEG and non‑animated GIF |
| Maximum Image Size | 1024 × 768 px, up to 200 kB (may reach 1 MB) |
Only a charger approved for the ACW‑5A power supply may be used; other chargers void the warranty and can be dangerous.
No, the frame is not waterproof and should be kept dry at all times.
The frame accepts JPEG and non‑animated GIF files, converting them to a 320 × 240 pixel JPEG for display.
It must be disconnected from the mobile network in hospitals or any area where medical devices could be interfered with.
