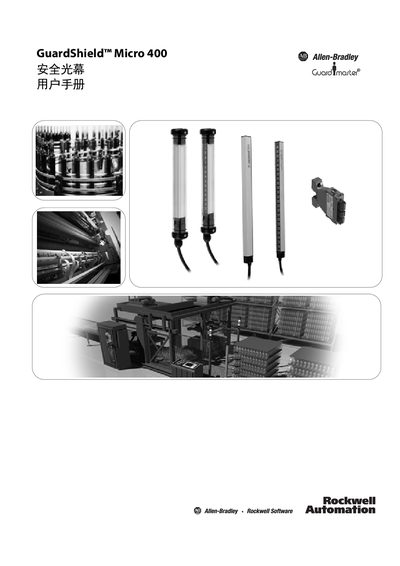

GuardShield Micro 400 Light Curtain User Manual

R GuardShield™ Micro 400 is a safety light curtain product with efficient safety protection. It is suitable for the application, installation, and maintenance of safety control. It utilizes solid-state control technology to ensure the safety of equipment and personnel.

Brand: GuardShield
Category: Automation control Equipment
Document type: User Manual
Language: English
Pages: 40
File format: PDF
File size: 5.4 MB
Published: 16 March, 2012
Updated: 29 September, 2023
MD5 checksum: 751E1FB5E85A59E707BEEC9F7D709D3B
PDF: GuardShield Micro 400 Light Curtain User Manual PDF

About this manual

The GuardShield Micro 400 user manual provides safety guidelines for the application, installation and maintenance of the solid‑state safety light curtain. It includes compliance information, wiring diagrams, connector details and recommended power supply.

The document also lists technical specifications such as IP69K protection, IEC 61496 compliance, EN ISO 13849 SIL rating, +24 V DC supply and M12 connector type, as well as part numbers and ordering information.

What's inside

Safety Guidelines
Installation
Wiring Diagram
Power Supply
Compliance and Standards
Technical Specifications
Parts List

Specifications

Ingress Protection	IP69K
IEC Standard	IEC 61496‑1 / IEC 61496‑2
ISO Standard	EN ISO 13849 (SIL C)
