FIBOX CAB CAB P 302017 is a waterproof insulated cabinet produced by Fibox company. It has IP66 and IK10 protection levels and can be used in the temperature range of -50℃ to 150℃. It includes base, door, 3mm double bit lock, mounting plate, DIN rail and wall fastening lugs, but does not include wall mounting screws.

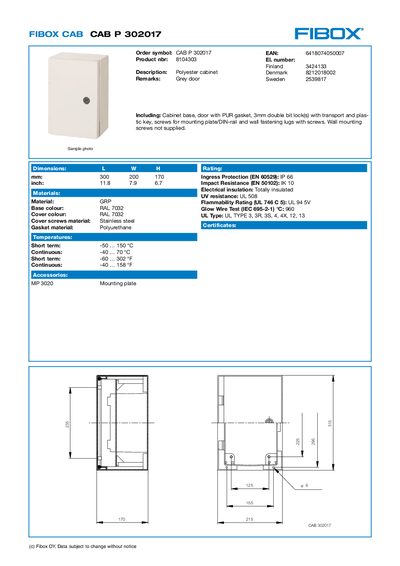

This leaf‑let lists a range of Fibox polyester cabinets (model numbers CAB P 302017, 403017, 504023, 604023, 705027, 806030, 1008030). Each entry includes the cabinet dimensions, ingress protection, impact resistance, material, colour and mounting hardware.
All cabinets feature a GRP construction with a polyurethane gasket, stainless‑steel cover screws, UL‑type certifications and temperature ratings for short‑term and continuous operation.
| Ingress Protection | IP 66 |
|---|---|
| Impact Resistance | IK 10 |
| UV resistance | UL 508 |
| Material | GRP |
| Flammability Rating | UL 94 5V |
| Base colour | RAL 7032 |
| Cover colour | RAL 7032 |
| Cover screws material | Stainless steel |
| Gasket material | Polyurethane |
| Temperature range (short term) | -60 °C to 150 °C |
| Temperature range (continuous) | -40 °C to 70 °C |
All listed cabinets have an IP66 rating.
The cabinets are rated IK10 for impact resistance.
The cabinets are constructed from GRP (glass‑reinforced polyester).
Short‑term operation is allowed from –60 °C up to 150 °C.
