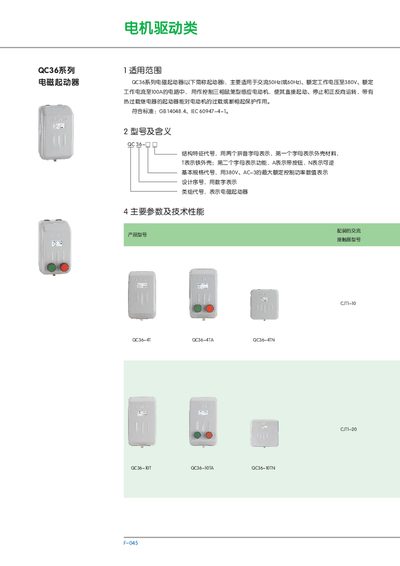

QC36 series electromagnetic starter is mainly suitable for AC 50Hz (or 60Hz), rated working voltage up to 380V, rated working current up to 100A circuit, used to control three-phase squirrel cage induction motor, make it direct start, stop and reverse operation, with thermal overload relay starter can protect motor overload or phase break.
The QC36 series electromagnetic starter is designed for controlling three‑phase induction motors with rated voltages up to 380 V, currents up to 100 A, and supply frequencies of 50 Hz or 60 Hz. The document outlines model designations, technical parameters, and safety standards such as GB 14048.4 and IEC 60947‑4‑1.
Installation guidelines cover altitude limits (≤2000 m), ambient temperature range (‑5 °C to +40 °C), and humidity conditions. Physical dimensions, connector types, and wiring diagrams are also provided to assist installers and service technicians. This manual is written in Chinese.
| Rated Voltage | 380 V |
|---|---|
| Rated Current | 100 A |
| Supply Frequency | 50 Hz or 60 Hz |
| Maximum Installation Altitude | 2000 m |
| Operating Temperature Range | -5 °C to +40 °C |
| Maximum Relative Humidity | 50 % |
The starter is rated for voltages up to 380 V.
It can handle a current of up to 100 A.
The device operates on either 50 Hz or 60 Hz AC supply.
Installation is allowed up to an altitude of 2000 m.
