YBLXW-5/11 micro switch is suitable for AC 50 60Hz, AC380V, Ie0.79A; DC220V, Ie0.14A control circuit. It is widely used in mechanical, textile, light industry, electronic instruments and other various machinery equipment for travel control, limit protection and interlocking.
The YBLXW‑5/11 series micro‑move switches are designed for four‑way control circuits in machinery, equipment, and industrial automation. They operate on 50‑60 Hz AC 380 V (0.79 A) or DC 220 V (0.14 A) and meet IP52 protection standards.

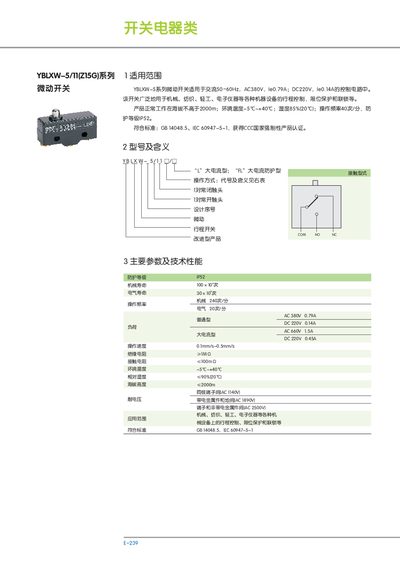

Key features include a mechanical life of 100 × 10 cycles, an electrical life of 30 × 10 cycles, operation up to 40 cycles/min, temperature range –5 °C to +40 °C, humidity up to 85 % (20 °C), and altitude capability up to 2000 m. The manual lists multiple model variants, wiring options, and installation dimensions. This manual is written in Chinese.
| Rated AC voltage | AC 380 V |
|---|---|
| Rated DC voltage | DC 220 V |
| IP rating | IP52 |
| Mechanical life | 100 × 10 cycles |
| Electrical life | 30 × 10 cycles |
| Operating frequency | 40 cycles/min |
| Operating temperature range | -5 °C to +40 °C |
| Relative humidity | 85 % (20 °C) |
| Contact resistance | 100 mΩ |
The series has an IP52 protection rating.
It is rated for AC 380 V (0.79 A) and DC 220 V (0.14 A).
The device works from –5 °C to +40 °C.
