YBLX-P1 series limit switches are suitable for AC 50-60Hz,Ue380VIe5A DCUe220VIe0.15A and below electrical circuits, used for motion mechanism travel control, direction or speed conversion, machine tool automatic control, motion mechanism limit action and control travel or program.

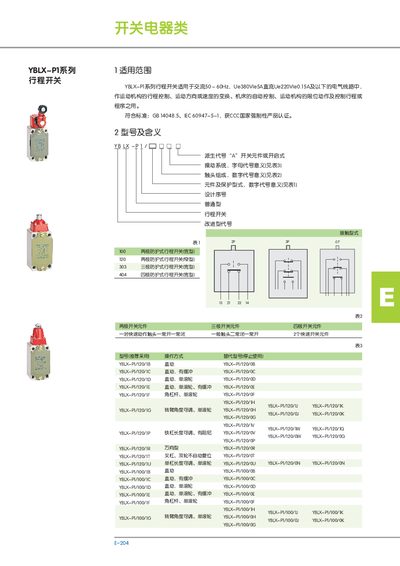

The YBLX P1 series stroke switch manual provides the necessary information for selecting, installing and operating the switches. It lists the applicable power supplies, control currents, mechanical life and environmental limits.
The document also includes detailed dimensions for each model variant, mounting options, and a table of part numbers for different configurations. Technical parameters such as rated voltage, current, IP rating and operating temperature are presented for quick reference. This manual is written in Chinese.
| Rated AC Voltage | 380 V |
|---|---|
| Rated DC Voltage | 220 V |
| Rated Control Current (AC) | 5 A |
| Ingress Protection | IP52 |
| Mechanical Life | 60 × 10 cycles |
| Electrical Life | 30 × 10 cycles |
| Operating Temperature Range | -5 °C to +40 °C |
| Maximum Relative Humidity | 95 % |
| Maximum Altitude | 2000 m |
It is rated for 380 V AC.
The switch operates from –5 °C to +40 °C, up to 95 % relative humidity, and up to 2000 m altitude.
The device has an IP52 rating.
