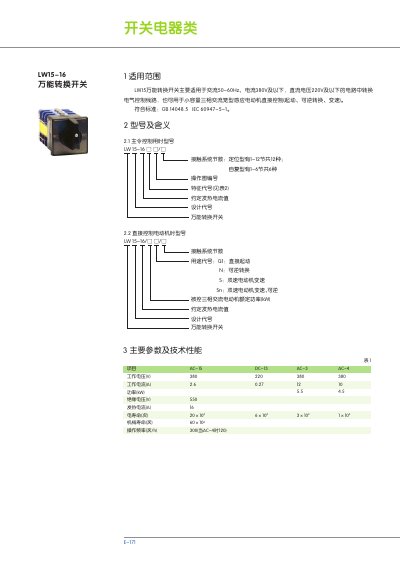

LW15-16 universal switching switch is mainly suitable for AC 50 60Hz, current 380V and below, direct current voltage 220V and below circuit conversion electrical control line, can also be used for small capacity three-phase AC cage induction motor direct control (starting, reversing conversion, speed change).
The LW15-16 universal transform switch is designed for AC 50‑60 Hz circuits up to 380 V and DC up to 220 V, and can directly control small‑capacity three‑phase cage‑type induction motors for start, reversible conversion, and speed variation. It complies with GB 14048.5 and IEC 60947‑5‑1 standards.
The device offers two contact system types: positioning (1‑12 positions) and self‑return (1‑6 positions). Technical parameters such as working voltage, current, power, insulation voltage, heating current, electrical and mechanical life, and operation frequency are listed in the tables. Ordering requires the full model code, e.g., LW15‑16 D0723/3. This manual is written in Chinese.
It meets GB 14048.5 and IEC 60947‑5‑1 standards.
The positioning type provides 1 to 12 positions, a total of 12 variants.
The self‑return type offers 1 to 6 positions, a total of 6 variants.
The complete model code, such as LW15‑16 D0723/3, must be used for ordering.
