Featured LW15-16 manuals

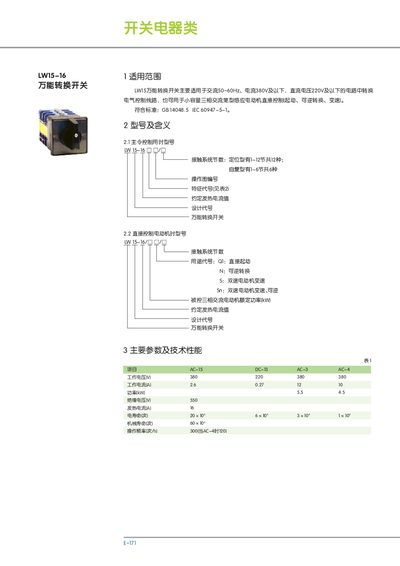

LW15-16 Universal Transform Switch Manual
The LW15-16 universal transform switch is designed for AC 50‑60 Hz circuits up to 380 V and DC up to 220 V, and can directly control small‑capacity three‑phase cage‑type induction motors for start, reversible conversion, and speed variation. It complies with GB 14048.5 and IEC 60947‑5‑1 standards.
The device offers two contact system types: positioning (1‑12 positions) and self‑return (1‑6 positions). Technical parameters such as working voltage, current, power, insulation voltage, heating current, electrical and mechanical life, and operation frequency are listed in the tables. Ordering requires the full model code, e.g., LW15‑16 D0723/3. This manual is written in Chinese.
Covers: Applicable Range · Model Designation and Meaning · Technical Parameters · Physical Dimensions and Installation · Contact System Options · Ordering Information
LW15-16 Universal Transform Switch Manual
This document provides the applicable range for the LW15-16 universal transform switch, which is suitable for AC 50‑60 Hz up to 380 V and DC up to 220 V, and outlines the various model designations and contact system sections.
It also lists the main technical specifications such as working voltage, current, power, insulation voltage, electrical and mechanical life, and gives classification tables, physical dimensions, installation sizes, and ordering instructions. This manual is written in Chinese.
Covers: Scope · Model and Designations · Technical Parameters · Classification · Physical Dimensions and Installation · Ordering Information
Latest LW15-16 manuals
LW15-16 Universal Transform Switch Manual
Product Leaflet 2 pages · 248 KB · ZHThe LW15-16 universal transform switch manual provides specifications, contact system options, and ordering information for the device.
LW15-16 Universal Transform Switch Manual
User Manual 2 pages · 248 KB · ZHThe manual describes the LW15-16 universal transform switch, its scope, model designations, technical parameters, classification, dimensions and ordering…
