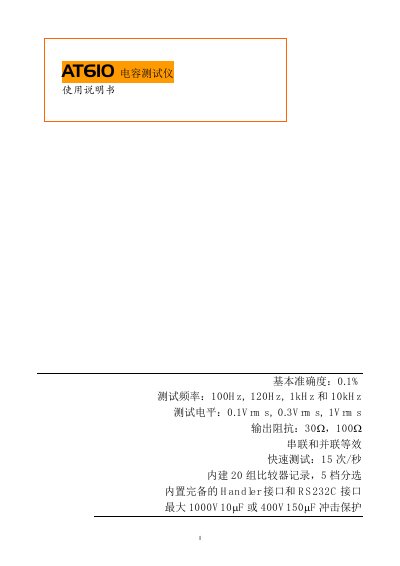

AT610 Capacitance Meter Operation Manual
The AT610 is a desktop capacitor tester that measures capacitance, resistance, dissipation factor and quality factor. It features a micro‑processor controller, VFD display, Handler and RS‑232C interfaces, and supports remote SCPI control for automated testing.
The document covers installation and setup, safety precautions, detailed specifications, operation procedures, and a full SCPI command reference. It also includes warranty information and a comparison with the AT611 variant. This manual is written in Chinese.
| Power consumption | Maximum 50 VA |
|---|---|
| Operating voltage | 198‑252 VAC, 47.5‑52.5 Hz |
| Test voltage levels | 0.1 Vrms, 0.3 Vrms, 1 Vrms |
| Basic accuracy | 0.1 % |
The AT610 provides a Handler interface and an RS‑232C interface for communication and remote control.
It can measure capacitance (C), resistance (R, ESR, EPR), dissipation factor (D), and quality factor (Q).
