A500.G3 is the latest generation of automotive testing equipment developed by Rethink Software (Shenzhen) Co., Ltd., designed in accordance with the latest international standards in the automotive industry, and can detect most foreign models on the market. It is a perfect product for automotive fault repair.

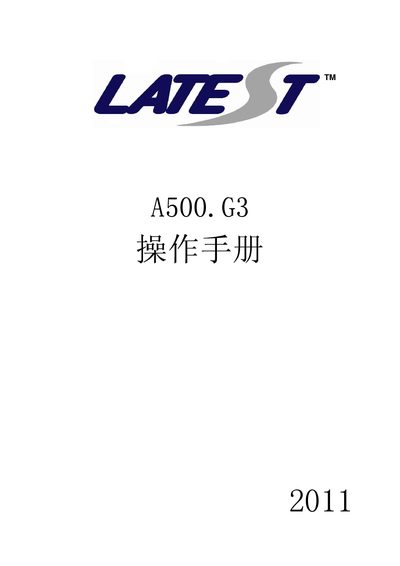

This manual introduces the A500.G3, a compact dual‑core diagnostic device with 64 KB RAM and 64 KB flash memory. It describes the device’s key features, supported interfaces (16‑pin diagnostic connector, USB 2.0) and indicator LEDs.
The guide covers hardware connections, installation procedures, usage instructions, and service warranty terms, helping users set up and operate the unit safely and efficiently. This manual is written in Japanese.
| Processor | Dual‑core diagnostic processor |
|---|---|
| RAM | 64 KB |
| Flash Memory | 64 KB |
| Diagnostic Interface | 16‑pin high‑density connector |
| USB Interface | USB 2.0 |
| Indicator LEDs | 3 LEDs |
| Supply Voltage | DC 9 V – 15 V |
| Dimensions | 165 × 115 × 45 mm |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
It operates from a DC supply of 9 V to 15 V.
The A500.G3 has three indicator LEDs.
A 16‑pin high‑density diagnostic connector is provided.
The unit measures 165 mm × 115 mm × 45 mm (L × W × H).
