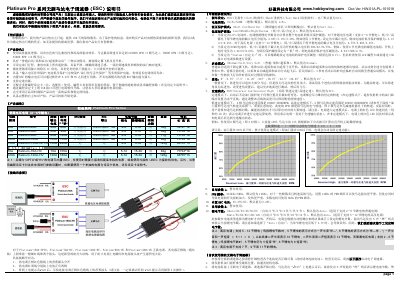

Platinum Pro series brushless motor electronic speed controller (ESC) manual, introduces the product features, including instructions for use, after-sales service, product features, product specifications, wiring diagram, programmable parameter description, etc.
This manual covers the Hobbywing Platinum Pro series electronic speed controller (ESC) for brushless motors. It explains safety precautions, wiring diagrams, programmable parameters and the first‑use startup procedure.
Key sections include product features, specifications, wiring guide, programmable settings (brake, battery type, low‑voltage protection, startup mode, etc.), throttle‑travel calibration, protection functions, fault handling and how to use a programming card or remote to adjust parameters. This manual is written in Chinese.
| Maximum motor speed | 210 000 RPM (2‑pole), 70 000 RPM (6‑pole), 35 000 RPM (12‑pole) |
|---|---|
| Built‑in BEC output voltage | Selectable 5.25 V or 6 V via software |
| PWM frequency options | 12 kHz (default) or 8 kHz |
| Protection functions | Input‑voltage abnormal, low‑voltage battery, over‑heat, throttle‑signal‑loss protection |
Push the throttle stick to the lowest position, wait about 1 second, and the calibration will be successful.
The ESC provides input‑voltage abnormal protection, low‑voltage battery protection, over‑heat protection, and throttle‑signal‑loss protection.
Use the software to switch the built‑in BEC voltage between 5.25 V and 6 V.
