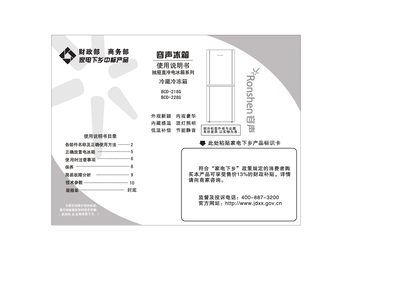

This manual provides detailed instructions for the Ronshen BCD-228G direct‑cooling refrigerator, covering component identification, proper placement, usage precautions, and maintenance. It also includes a quick fault analysis and a full list of technical parameters.
The guide explains how to adjust the temperature control knob, install shelves, handle the ice tray, and safely move the appliance. Safety warnings address electrical protection, refrigerant handling, and proper ventilation distances. This manual is written in Chinese.
| Total Net Capacity (L) | 228 |
|---|---|
| Freezer Net Capacity (L) | 95 |
| Freezing Capacity (kg/24h) | 4.3 |
| Rated Voltage (V) | 220‑240 |
| Rated Frequency (Hz) | 50 |
| Rated Current (A) | 0.8 |
| Power Consumption (kWh/24h) | 0.49 |
| Energy Efficiency Class | 1 |
| Refrigerant | R600a |
| Dimensions (W×D×H) mm | 554×600×1715 |
| Noise Level (dB(A)) | 37 |
Leave at least 100 mm at the back, 200 mm on each side, 300 mm above, and keep the door opening space at 160 mm.
The BCD‑228G uses R600a, a flammable refrigerant.
The rated power consumption is 0.49 kWh per 24 hours.
